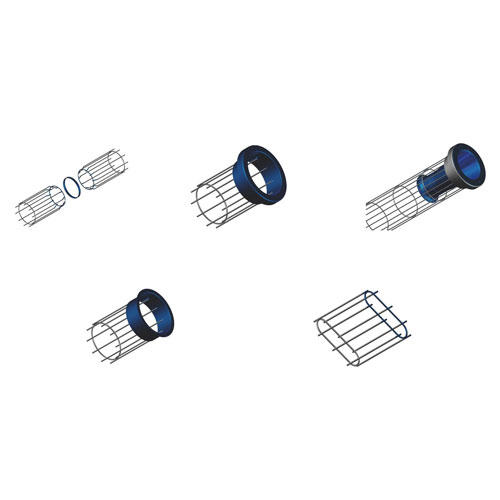

Filter Cage
We manufacture cages for use in most bag houses. Properly-designed cages serve as critical bag house components for optimum performance and durability. The supporting cages are manufactured to give the best possible match with Filter Bags, thus granting a trouble-free and long-lasting operation to our customers. REE is the largest cage producing factory in the eastern part of India. Filter cages are available in a large variety of shapes, materials and finishing treatments and they can be used in several industrial applications and under the most severe operating conditions.
Supporting cages are produced according to the common OEM designs or tailor-made to specific needs. The supporting cages can be supplied with venturis and other accessories as requested by the application.
Cages Are Traditionally Constructed from One of the Following:
Dimension
- External diameter: From Ø100 to Ø190 mm
- Length for 1 part cages: From 500 to 7000 mm
- Length for more than 1 part cages: Up to 12,000 mm
- Diameters of longitudinal wires and ring wires: From Ø 2.5 to Ø 6 mm
- Different cage section shapes: From 4 to 24 wires
Material
- Carbon Steel
- Low Carbon Steel
- Galvanized carbon Steel
- Stainless steel (304/316/316L)
Types Of Finishing
- Cataphoresis coating for high temperature and corrosion resistance
- Epoxy and polyester powder coated
- Pickling and Passivization (for stainless steel)
The Advantages Of Our Cages Are:
- Cost Effective
- Longer life
- Light in Weight
- Easy to Handle at site
- Easy to interchange
